Specifications
Materials available
stainless steel (304, 316, 316L, etc.)
Opening size
>0.3mm
Screen size
Max.2.5m width
| Item | Slot Size (mm) | Profile Wire | Support Rod | ||||
|---|---|---|---|---|---|---|---|
| Triangle/Wedge Wire (mm) | Triangle/Wedge Wire (mm) | Square Wire (mm) | Round Bar (mm) | Flat Bar (mm) | Water Drop Wire (mm) | ||
| WWSP-01 | 0.02 | 0.45 × 1.3 0.5 × 1 0.5 × 1.2 0.65 × 1.3 0.75 × 1.5 1 × 2 1.2 × 2.3 1.5 × 2.5 | 1 × 2 1.2 × 2.3 1.5 × 2.5 2 × 3 | 1.5 × 2.5 2 × 2.3 2 × 3 | - | - | - |
| WWSP-02 | 0.05 | - | - | - | |||
| WWSP-03 | 0.1 | - | - | - | |||
| WWSP-04 | 0.15 | 1.5 × 2.5 1.8 × 2.5 1.8 × 3 1.8 × 3.7 2 × 3 2 × 4 2.2 × 3.5 2.2 × 4 2.2 × 4.2 3 × 5 | 2 × 2.3 2 × 3 2.2 × 5.3 3 × 5 4 × 6 4.2 × 6.5 4 × 7.5 | - | - | - | |
| WWSP-05 | 0.2 | D4 D5 D6 D8 D10 D12 | - | - | |||
| WWSP-06 | 0.25 | 1 × 2 1.2 × 2.3 1.5 × 2.5 1.8 × 2.5 1.8 × 3 1.8 × 3.7 2 × 3 2 × 4 2.2 × 3.5 2.2 × 4 2.2 × 4.2 3 × 5 | - | - | |||
| WWSP-07 | 0.3 | - | - | ||||
| WWSP-08 | 0.4 | 2 × 25 3 × 25 3 × 8 3 × 10 3 × 12 3 × 15 3 × 20 4 × 25 | D3.8 × 5.3 D5 × 6.5 D6 × 8 | ||||
| WWSP-09 | 0.5 | ||||||
| WWSP-10 | 0.6 | ||||||
| WWSP-11 | 0.7 | ||||||
| WWSP-12 | 0.8 | 1.5 × 2.5 1.8 × 3.7 1.8 × 2.5 2 × 3 2 × 3.5 2 × 4 2.2 × 3.5 2.2 × 4 2.2 × 4.2 2.5 × 5 3 × 4.5 3 × 4.6 3 × 5 3 × 6 3.2 × 6.2 3.5 × 6 3.5 × 6.5 3.4 × 6.5 3 × 7 4 × 6 4 × 7 5 × 7 5 × 8 | 1.5 × 2.5 1.8 × 3.7 1.8 × 2.5 2 × 3 2 × 3.5 2 × 4 2.2 × 3.5 2.2 × 4 2.2 × 4.2 2.5 × 5 3 × 4.5 3 × 4.6 3 × 5 3 × 6 3.2 × 6.2 3.5 × 6 3.5 × 6.5 3.4 × 6.5 3 × 7 4 × 6 4 × 7 5 × 7 5 × 8 | ||||
| WWSP-13 | 0.9 | ||||||
| WWSP-14 | 1.0 | ||||||
| WWSP-15 | 1.5 | 3 × 5 4 × 6 4 × 6.5 4 × 7.5 5 × 8 | |||||
| WWSP-16 | 2 | ||||||
| WWSP-17 | 2.5 | ||||||
| WWSP-18 | 3 | ||||||
| WWSP-19 | 4 | ||||||
| WWSP-20 | 5 | ||||||
| WWSP-21 | 6 | ||||||
| WWSP-22 | 7 | ||||||
| WWSP-23 | 8 | ||||||
| WWSP-24 | 9 | ||||||
| WWSP-25 | 10 | ||||||

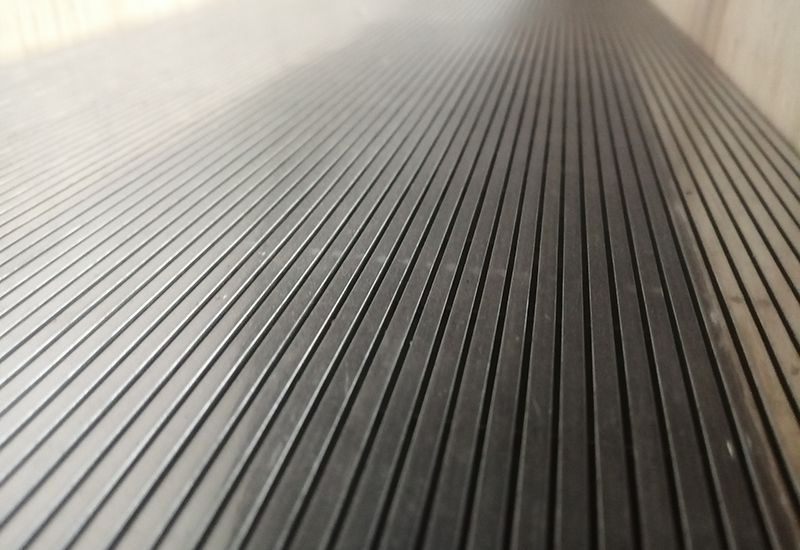

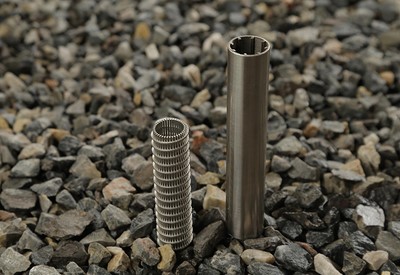

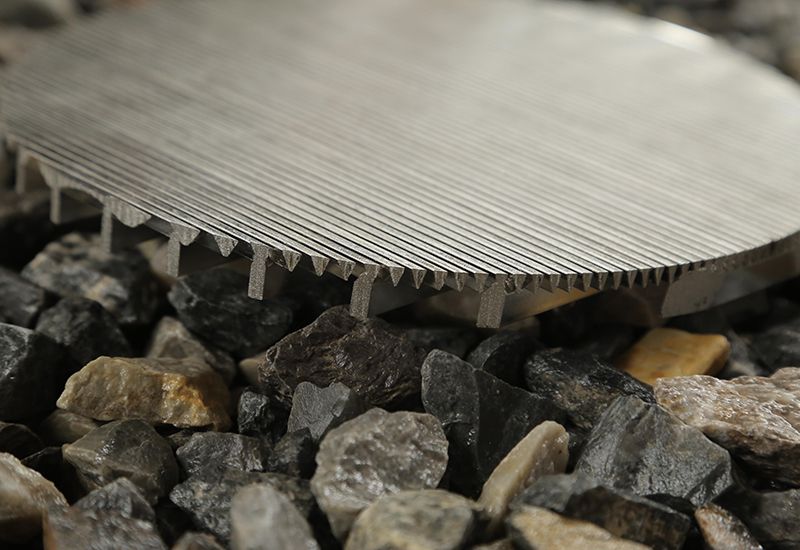

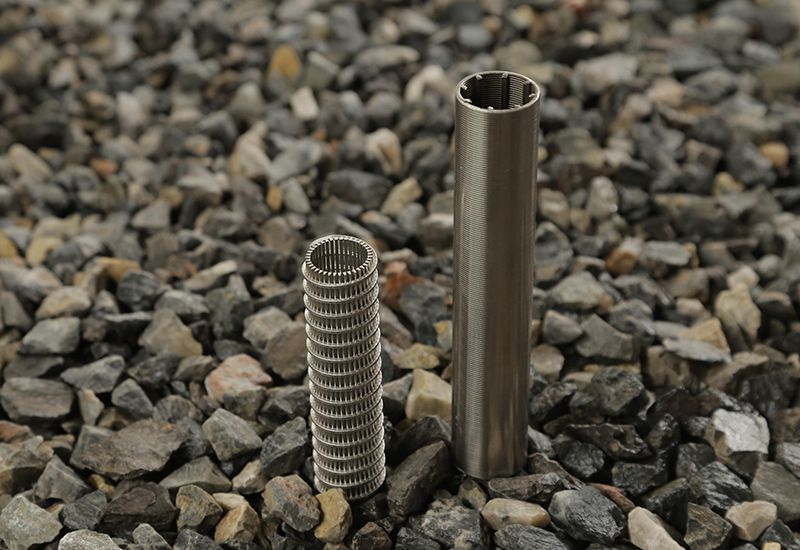

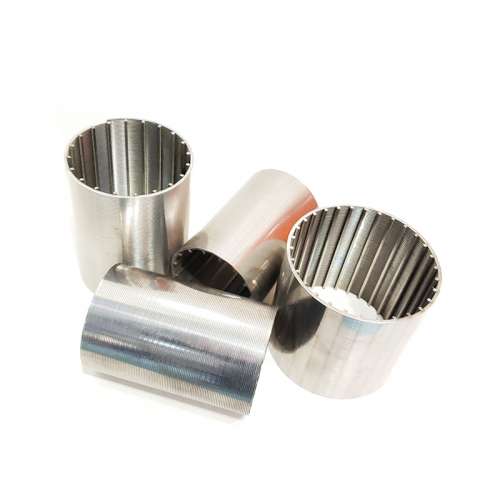

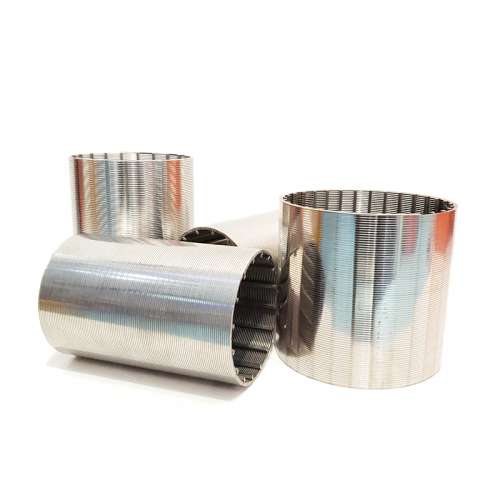

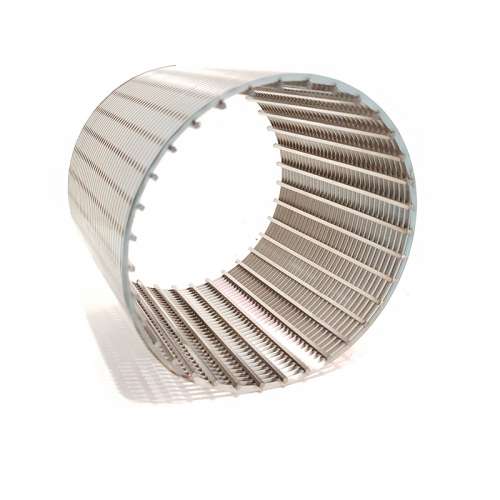

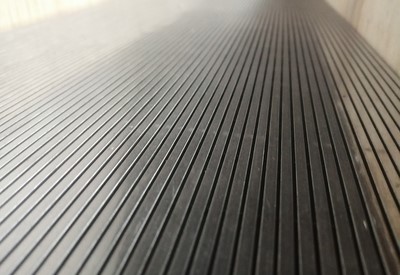

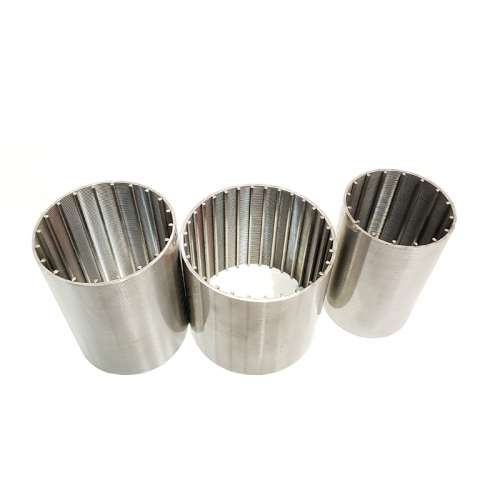

Wedge wire screens are important components used in various industries for filtration, separation, and sizing processes. They are composed of surface profiles (wedge wires) that are welded onto support rods, creating a robust and efficient filtration medium.
These screens are known for their durability, reliability, and precise aperture sizes, making them suitable for a wide range of applications, including water treatment, wastewater treatment, pulp and paper processing, food and beverage production, petrochemical refining, mining, and many others.
The wedge wire design offers several advantages over traditional mesh screens. Its unique construction provides a self-cleaning feature, preventing clogging and reducing maintenance requirements. Additionally, the precise gap openings between the wires allow for accurate particle separation and efficient fluid flow.

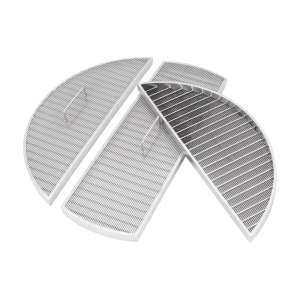

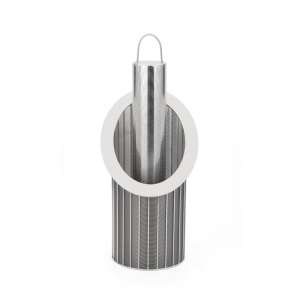

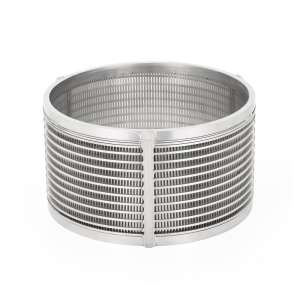

Wedge wire screens come in various shapes, sizes, and configurations to meet specific application requirements. They can be manufactured from different materials such as stainless steel, carbon steel, and specialty alloys to ensure compatibility with diverse operating conditions, including high temperatures, corrosive environments, and high-pressure applications.
Overall, wedge wire screens play a crucial role in enhancing process efficiency, improving product quality, and ensuring regulatory compliance across a wide range of industries. Their versatility and performance make them indispensable components in numerous industrial processes.
