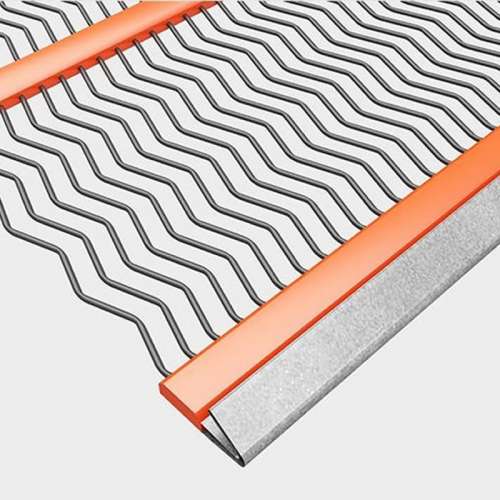

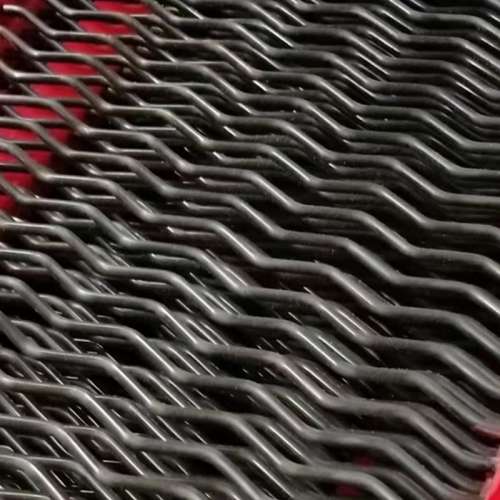

Made with crimped wires placed parallel to each other, best used for severe blinding application, large open area offers effective sizing control, ideal for the removal of super fine materials and etc.
Like all the other self-cleaning screen mesh types, wave opening screen prevents clogging, blinding, and pegging. It provides maximum throughput in severe blinding conditions and offers some sizing control. Ideal for removing fines or for screening dry manufactured sand, agricultural lime, mulch, and wood chips. Could also increase production in screening wet or adhesive lightweight materials.
Made with crimped wires placed parallel to each other, best used for severe blinding application, large open area offers effective sizing control, ideal for the removal of super fine materials and etc.
Like all the other self-cleaning screen mesh types, wave opening screen prevents clogging, blinding, and pegging. It provides maximum throughput in severe blinding conditions and offers some sizing control. Ideal for removing fines or for screening dry manufactured sand, agricultural lime, mulch, and wood chips. Could also increase production in screening wet or adhesive lightweight materials.
Wire diameter: 1.2mm-12.7mm Opening size:1.2mm~20.00mm This series is designed for finer size material and absorb greater impact while maintaining accurate sizing.
Features of Wave Opening Screen：
Eliminate severe blinding and clogging situation
Increase open area than Diamond openings
Maximum throughout
Ideal for removing fines

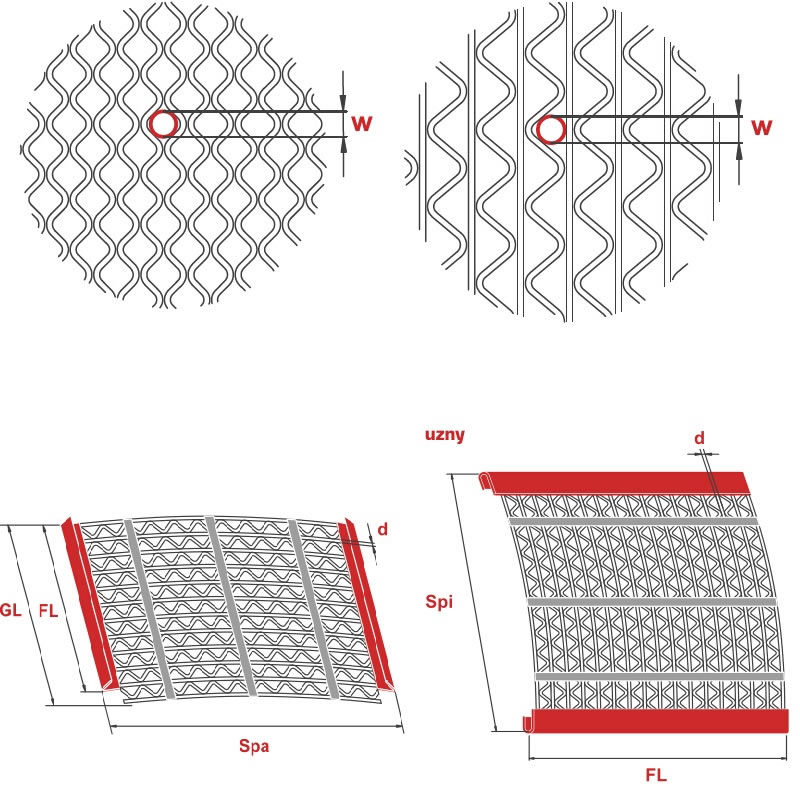

Specification of Wave Opening Self Cleaning Screen Mesh：
| Item No. | Opening (mm) | Wire Size (mm) |
| 1 | 3.18 | 1.37 |
| 2 | 4.76 | 1.83 |
| 3 | 3.15 | 2 |
| 4 | 4 | 2 |
| 5 | 6 | 2 |
| 6 | 6.35 | 2.03 |
| 7 | 7.94 | 2.34 |
| 8 | 11.2 | 3.55 |
| 9 | 17.5 | 5 |
