Modular polyurethane screens are suitable for a large number of applications. Their special design allows for easy installation with various connection options. Modular screens can be grooved on the sides to slide in or have special locks that fit each other. The panels can also lock onto the rails of the screen box bracing. Fitting modular screens will save you time on installation and replacement. These panels can also be changed individually without affecting others. The panels are repairable.
We supply Aggregate and Sand Polyurethane Screens in different types for specific applications with a variety of aperture opening sizes and thicknesses.
Red Star manufactures polyurethane screen panel available with solutions tailored to customer’s application needs in relation to wear life, color, bolting method, etc.
Polyurethane vibrating screen is made of polyurethane materials. It mainly used for miningmineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places. It can separate and screen almost all of materials from coarse stones to fine materials and ideal for both dry and wet materials.
MODEL | DIMENSION(MM) L*W*H | APERTURE(mm) |
DZ01S Tension Screen(with steel wire) | 2400*1500*25 | 4*4-6*6 |
2400*1500*25 | 8*8-12*12 | |
2400*1500*28 | 15*15-35*35 | |
2400*1500*30 | 40*40-60*60 | |
2400*1500*40 | 65*65-90*90 | |
accept customized production | ||
DZ02S Skeleton Screen (with steel skeleton) | 2400*1500*25 | 4*4-6*6 |
2400*1500*25 | 8*8-12*12 | |
2400*1500*28 | 15*15-35*35 | |
2400*1500*30 | 40*40-60*60 | |
2400*1500*40 | 65*65-90*90 | |
accept customized production | ||
DZ03S Dewatering Screen (with steel skeleton) | 305*305*30 | 0.1*12-2.5*12 |
305*305*40 | ||
600*600*40 | ||
500*550*40 | ||
600*2400*40 | ||
accept customized production | ||
DZ04S Flip-flow Screen | W330mm*H6-8mm | as the requirements |
DZ05S High frequency screen | 1220*700 1220*840 | 0.063mm |
1mm | ||
2mm | ||
DZ06S Wave screen | accept customized products for all size and aperture | |
other polyurethane Screen | accept customized products for all size and aperture | |
Applications

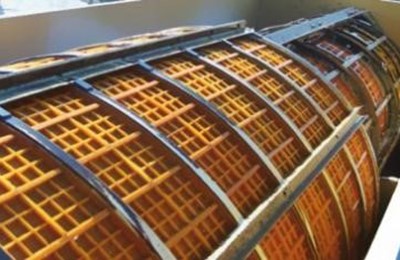

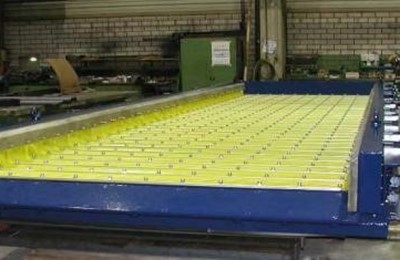

Polyurethane screen panel is widely used as vibrating screen mesh for fine screening of coal, minerals, coke, beans and more bulk materials in agriculture, chemical, mineral, quarry, smelting and many other industries. Since the polyurethane screen panel can perform screening and classifying of wet fine materials, it can also be used in water conservation, hydropower and dewatering industries.
